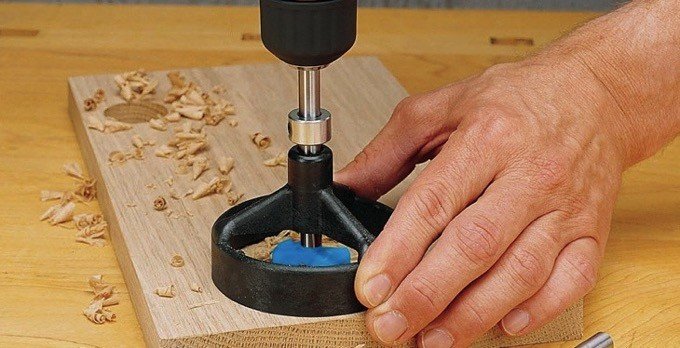

Best Drill Guide Attachment

There are always holes to drill when doing most wood projects. Although drill bits are the best tools for this, they do not guarantee that you will get evenly sized holes and at the desired depth. For accurate and consistent holes you need something to direct the tool, and for this, the drill guide attachment is your best bet.

Drill guides work by maintaining a perfect alignment between the drill bit and workpiece as the former rotates to create the hole. Also, they help to make sure that the drilling tool does not go beyond the desired depth. But, to get these benefits of using a drill guide, it is vital to ensure that you get a high-quality attachment that is compatible with your drilling tools.

Floor Drill Press stand with cast iron vise/Rotary Tool Workstation...
Richelieu R77229- Multi-Angle Drill Guide Attachment For 1/4In. &...
Kreg K4MS Jig Master System , Blue
Wolfcraft 4522 Tec Mobil Drill Stand
JIG IT Drill Guide for Hand Drill & Presses - Durable & Versatile 90...
Floor Drill Press stand with cast iron vise/Rotary Tool Workstation...
Richelieu R77229- Multi-Angle Drill Guide Attachment For 1/4In. &...
Kreg K4MS Jig Master System , Blue
Wolfcraft 4522 Tec Mobil Drill Stand
JIG IT Drill Guide for Hand Drill & Presses - Durable & Versatile 90...
-
-
-
-
-
Floor Drill Press stand with cast iron vise/Rotary Tool Workstation...
Floor Drill Press stand with cast iron vise/Rotary Tool Workstation...
-
Richelieu R77229- Multi-Angle Drill Guide Attachment For 1/4In. &...
Richelieu R77229- Multi-Angle Drill Guide Attachment For 1/4In. &...
-
Kreg K4MS Jig Master System , Blue
Kreg K4MS Jig Master System , Blue
-
Wolfcraft 4522 Tec Mobil Drill Stand
Wolfcraft 4522 Tec Mobil Drill Stand
-
JIG IT Drill Guide for Hand Drill & Presses - Durable & Versatile 90...
JIG IT Drill Guide for Hand Drill & Presses - Durable & Versatile 90...
-

Last update on 2024-12-12 / Affiliate links / Images from Amazon Product Advertising API

7 Best Drill Guide Attachments - Reviews

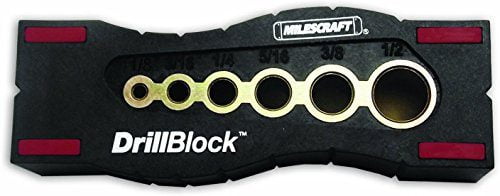

1. Milescraft 1312 Drill Block

Editor's Rating: 4.4 out of 5 stars (4.4 / 5)

Milescraft 1312 Drill Block

The Milescraft 1312 offers a cheap but effective way of ensuring that you always drill straight and even holes. It is the most affordable item among our portable drill guide reviews, but it is still a convenient tool in spite of its price tag. This drill guide features some centerlines which are what ensure that you always get an accurate alignment when drilling on various surfaces.

Milescraft 1312 makes it possible to drill all the six common or usual drill diameters because it comes with holes that range between 1/8 and 1/2-inch. It also features some non-slip padding that holds it in place to prevent slipping when drilling and also to ensure that it does not damage the workpiece.

With this drill guide, you will not have any difficulties making holes on corners or cylindrical surfaces thanks to the 2 product v-grooves. The ergonomic design of the block makes it fit into your hands with ease, and it is also lightweight (4.6 ounces) for easy handling.

2. Wolfcraft 4525404 3/8-inch/1/4-inch Hand Drill Guide Attachment

Editor's Rating: 4 out of 5 stars (4 / 5)

Wolfcraft 4525404 Drill Guide Attachment

Wolfcraft 4525404 is a handy drill guide attachment that you can use from vertical, horizontal and angular positions. This drill guide features a lightweight aluminum base plate that you can maneuver anywhere when you need some guided positioning for particular applications.

This Wolfcraft drill guide features some double guide bars on the base that you can shift back and forth so as to set the angle that you prefer. The angle position can go up to 45 degrees, and it also features an adjustable depth stop and straight stop that make repetitive drilling possible and easy.

You can use this guide with all 3/8-inch and 1/4-inch drills, and it comes with 4 bumper pads at the base that help to keep it in position and also protect the workpiece.

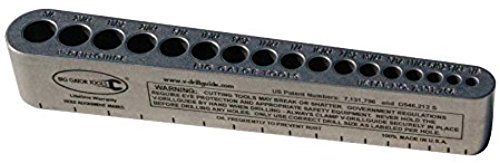

3. STD1000DGNP V-Drill Guide by Big Gator Tools

Editor's Rating: 4.7 out of 5 stars (4.7 / 5)

STD1000DGNP V-Drill Guide by Big Gator Tools

Big Gator Tools makes this v-drill guide for a woodworker that makes a wide variety of holes as it has 17 different hole sizes. The diameter of these holes ranges between 1/8-inch to 3/8-inch at increments of 1/64-inch. This drill guide features a v-groove design on the bottom for easy perpendicular alignment with different drill sizes when making holes on corners and round pieces.

If you are concerned about durability, this is one of the best drill guides for you. And this is because Big Gator Tools makes it with nickel alloyed steel that also undergoes heat treatment for maximum durability. Also, the material is non-plated, and it has a light oil coating to ensure that the guide does not rust.

The alignment marks on this guide are an excellent feature because they help you line up with the center to ensure that you get even more straight holes. Its size and design also make it one of the best portable drill guides since you can easily move it from one site to the other.

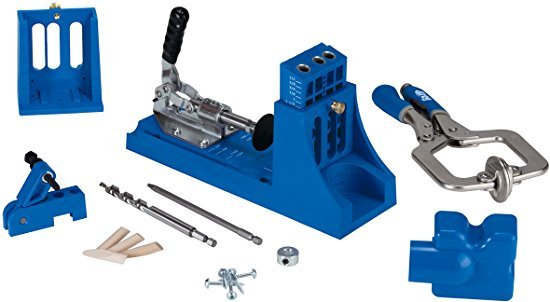

4. Kreg K4MS Jig Master System

Editor's Rating: 4.7 out of 5 stars (4.7 / 5)

Kreg K4MS Jig Master System

The Kreg K4MS is the most expensive portable drill guides on our list, but this is because of its performance, convenience, and capabilities that also make it one of the best drill guides. This unit features a removable guide that you can use with both portable bases and a bench top.

Kreg K4MS uses a patented 3-hole guide that allows woodworkers to get pockets holes with a perfect placement and you can achieve this in a variety of material thicknesses and widths. You can use it for wood between 1/2 to 1-1/2 inches thick which is way much better than what you get from most other portable drill guide attachments.

This Kreg jig also features a shroud for collecting dust that is very useful for keeping wood chips off the workpiece. The large and sturdy toggle clamp will allow for various clamping styles when securing the jig to your workbench.

Read More: Kreg K4 vs. Kreg K5: Which Is Better For You?

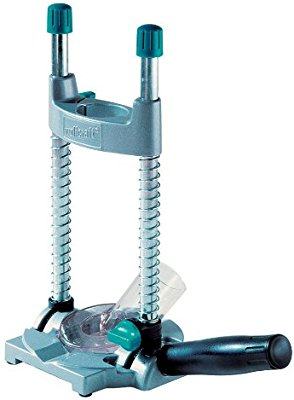

5. Wolfcraft 4522 Drill Stand

Editor's Rating: 4 out of 5 stars (4 / 5)

Wolfcraft 4522 Drill Stand

The Wolfcraft 4522 is one of the best drill guide attachment for attaching to 43 mm diameter drills because you can use it with almost all the familiar brands. This drill guide also ensures precision drilling of holes on flat surfaces, round work pieces and even on rails.

The stand on this drill guide attachment comes with a swiveling double guide bar that is also adjustable to ensure that you get precision drilling for vertical, horizontal and angle drilling. When using this guide, you can drill at an angle of up to 45 degrees.

Wolfcraft gives this drill guide pre-drilled holes that make it possible to secure it on a fixed stand. And with the guide bar and handle you can be confident of accurate and controlled drilling.

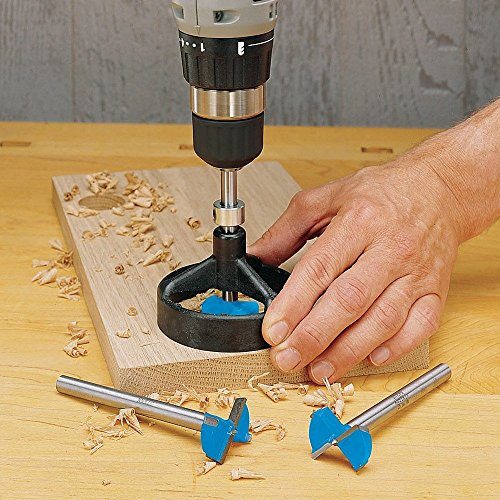

6. JIG IT Drill Guide

Editor's Rating: 4 out of 5 stars (4 / 5)

 JIG IT Drill Guide

If you are searching for a simple or basic drill guide for vertical and horizontal drilling, JIG IT might work for you. This drill guide is the second most affordable on our list, and so you will also not need to use a lot of money to get it. It is a plastic guide with four rubber feet that help to prevent slipping and damage to the workpiece.

JIG IT will work well for woodworkers that do not need to make some very deep or complicated holes or drill something that requires a lot of precision. The best thing about it is that you can use it with both hand drills and drill press and it works with most models. And if weight matters to you when shopping for a drill guide this is one of the lightest guides on our list.

7. AmyAmy Floor Drill Press Tool Stand

Editor's Rating: 4 out of 5 stars (4 / 5)

The AmyAmy is a perfect choice when you want to convert your existing rotary tools into a mini drill press. It comes with a solid metal frame that can fit most rotary tools. This stand also has a locking depth shaft that makes it possible to use it for repeated depth.

Pinion gearing and a metal rack that is spring loaded allow for a smooth and controlled plunge which is vital for getting some uniform and precise holes. The sturdy aluminum cast base ensures that you get a stable work area and it also features a planed surface with mounting holes and clamping platforms for stability.

Conclusion

A drill guide is one of the best tools you can have in the workshops as it helps to prevent the disappointment that comes from drilling misaligned or uneven holes. With the right drill guide, you can always be confident of getting perfect holes regardless of the surface.

Our drill guide reviews above will make it easy to find a good guide, but it is always important to make sure that you go for something that works well with your particular drilling tool.
